Integrate Oracle SOA Healthcare and Oracle SOA Suite back-end composites across segregated domains (Part 3 of 3)

The third and last post of the series  "Integrate Oracle SOA Healthcare and Oracle SOA Suite back-end composites across segregated domains" covers the creation of the back-end SOA composite, that acts as the man in the middle between the two configured SSHI endpoints. The post also covers how to perform the testing of the implementation using the HAPI Testing Console.

As guidance, this series is divided in:
  1. Part 1: Configuration of the separated domains and JMS artifacts
  2. Part 2: Healthcare (SSHI) configuration
  3. Part 3: SOA Composite and Testing

At the end of the article you may also access the list of artifacts produced for this exercise as to a sample message.

SOA Back-end composite

The composite to be created will be constituted by three main elements:
  1. Healthcare Adapter: Exposed service to receive messages from the Healthcare (SSHI) thought the inbound JMS queue
  2. Mediator: to deliver the message and its properties to the outbound Healthcare Adapter
  3. Healthcare Adapter: Reference able to send messages to the SSHI environment through the outbound JMS Queue
Create the SOA Application and Project

Create a new SOA Application with the name: soabpmfusion and a project called: sshi-jms-hub


A new empty composite is created

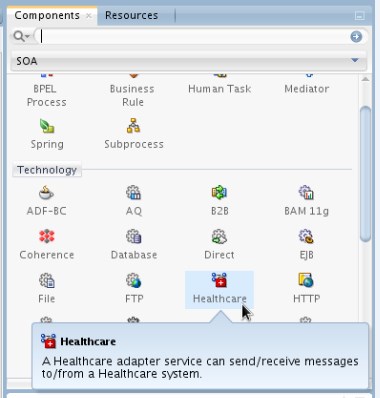

Start by dragging and dropping  an Healthcare Adapter from the components box to the Exposed Service lane


A new wizard pops up and the name hcService can be left as the Healthcare Adapter service name


For integration type, select JMS


This time point to the Healthcare (SSHI) domain connection. If it is not created yet, create a new Application Server connection to the newly created SOA-Domain (Domain B)


Since we will receive the HL7 messages arriving from the SSHI domain set the operation as Receive.


There are many options to define the Document handling of the adapter. The message XML schema can be imported from the SSHI to the composite allowing the local consumption of the XSD, it can be referenced from the MDS, use an XSD file from a local location or even receive the message as Base 64 opaque mode. Each of the options has its applicability, however, for this sample, lets select to import from the SSHI the XSD to be used in the composite.


Pick the ADT_A03_def from the document repository on the SSHI.


After all SSHI related configurations are complete, time to define the details for the integration between the SOA Domain (Domain-B) and the SSHI Domain (Domain-A).

Select the Oracle Weblogic JMS option



The next step is about defining the connection to the server where the JMS queues are available. In our sample the JMS queues are available from the SOA Domain. Go head using or setting the connection. If not available yet in your JDeveloper, create it a new connection pointing to SOA-Domain (SOA-B) and select it from the connection options.


Is in this new wizard window that the queue and the JmsAdapter Connection Pool JNDI name are configured. Use the browse button and the magnifiying glass icon to search and select the desired details

Destination Name Queue: jms/hc/SSHIInboundQueue
Message Body: BytesMessage
JNDIName: wis/wls/SSHI_HL7_IN

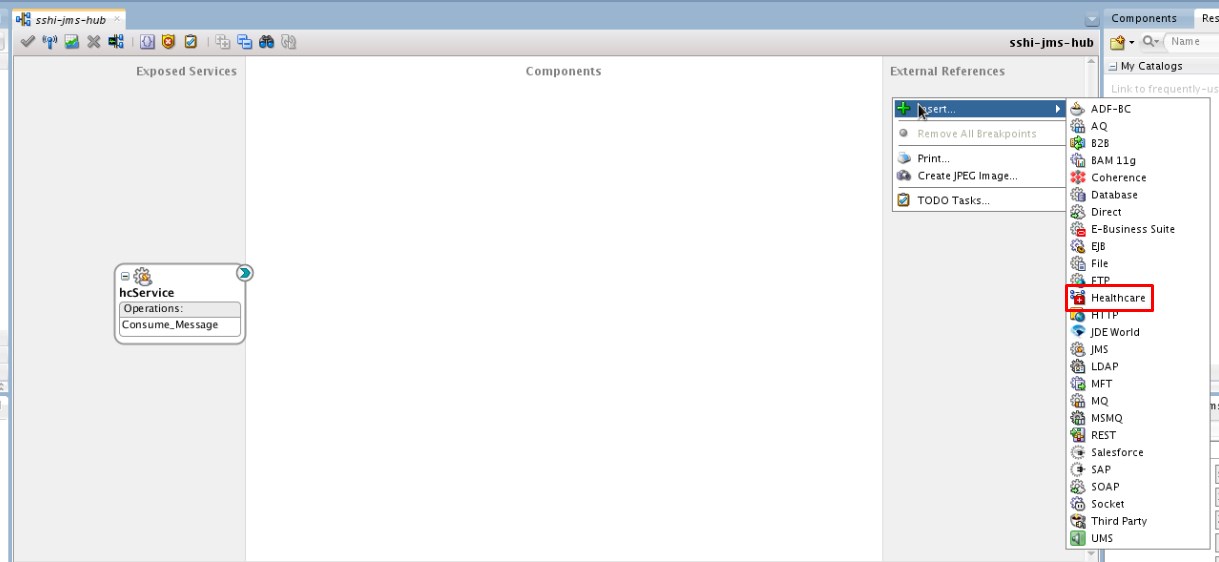

It is now time to add a new Healthcare Adapter, this time as a composite Reference


And name it as hcReference


The configuration will be similar as the outbound, except that the operations will be Send instead of Receive and the Queue and JNDI Name should be configured as:

Destination Name Queue: jms/hc/SSHIOutboundQueue
Message Body: BytesMessage
JNDIName: wis/wls/SSHI_HL7_OUT


Time to finalize the composite adding the mediator to connect both Healthcare Adapters


Add a new mediator component with the name SSHIMediator defining the Interface Later


Wire the components


The mediator has the mission to assign the message payload together with healthcare properties to the reference Healthcare Adapter. Typically, in a In Memory integration this is achieved using the hc.<property> elements available, but, since the jca.jms is being used, the jms property structure will need to be used instead.

The HC properties to be filled and delivered through to the SSHI are:
  • Document Type Name (DOCTYPE_NAME) - Copied from the inbound
  • Document Type Version (DOCTYPE_REVISION) - Copied from the inbound
  • Destination Endpoint (TO_ENDPOINT) - "SSHI_OUTBOUND_MLLP"
  • Message Sequence Id (INTERFACE_SEQUENCE_ID) - Copied from the inbound
  • Message Id (MSG_ID) (generated by generateGuid() function)




The image above depicts the following source code:

<assign>

<copy value="$in.property.jca.jms.JMSProperty.DOCTYPE_NAME"
 target="$out.property.jca.jms.JMSProperty.DOCTYPE_NAME"/>

<copy expression="'SSHI_OUTBOUND_MLLP'" target="$out.property.jca.jms.JMSProperty.TO_ENDPOINT"/>

<copy value="$in.property.jca.jms.JMSProperty.DOCTYPE_REVISION"
 target="$out.property.jca.jms.JMSProperty.DOCTYPE_REVISION"/>

<copy value="$in.property.jca.jms.JMSProperty.INTERFACE_SEQUENCE_ID"
 target="$out.property.jca.jms.JMSProperty.INTERFACE_SEQUENCE_ID"/>

<copy expression="ora:generateGUID()" target="$out.property.jca.jms.JMSProperty.MSG_ID"
 xmlns:ora="http://schemas.oracle.com/xpath/extension"/>

</assign>

The composite is now complete and ready to be deployed to the SOA Domain (SOA-B)

Testing

The testing will consists of sending a HL7 ADT 03 message through the inbound MLLP endpoint and expect an outbound message being sent to the outbound endpoint. The sample is finalizing with an acknowledge message successfully sent from the HAPI tool to the SSHI environment.

First, is necessary to configure the HAPI Testing Console.

Having the console initiated, lets created two connection:
  1. Sending Connections: In_Patient_Admition
  2. Receiving Connections: Out_Patient:Laboratory
Fill the details as described in the following two images:



Add the sample document to the messages tab (link to the sample message is available at the end of this post)



Start both sending and receiving connections - you should have a green sign on each.


Everything is set to test the implementation.

Select the message at the HAPI Console and, being sure that the correct Sending Connection is select and the options are configure for 1 message, press Send


A message will be sent and an successful acknowledge should be identified.



Check the message route at the SSHI Reports and observe that three messages were reported: two inbound (ADT A03 and Ack) and one out (ADT A03).


At the SOA-Domain Enterprise Manager it can be verified that the composite has been successfully completed.


It can be notice that the message went through the MLLP channel to the SSHI endpoint, was translated from HL7 raw format to XML and delivered to the internal delivery channel and through the JMS queues configured at the SOA-Domain (Domain-B).

The message is then picked from the queue by the back-end composite, delivered to the outbound internal delivery channel queue and consequently delivered through the endpoint to the MLLP Server in the SSHI-Domain (Domain A).

All the processed is finalized with the reception of a positive acknowledge from the MLLP HAPIS server.

Thank you for reading!!

Attachments

Integrate Oracle SOA Healthcare and Oracle SOA Suite back-end composites across segregated domains (Part 2 of 3)

This is the second part of the article covering an end-to-end example of a cross domain inter-operationality between an Oracle SOA for Healthcare Integration (SSHI) and SOA Back-End domain. This part delivers a step by step guide to implement the required Oracle SOA for Healthcare Integration (SSHI) configuration.

Please have in mind that the SSHI configuration is held on the SSHI Domain - Domain A.

Healthcare Configuration (SSHI)


An Healthcare integration with SSHI consists in:
  • Creation of HL7 Documents
  • Creation of endpoints, establishing the inbound and outbound MLLP channels
  • Creation of Internal Delivery Channels using the created JMS at the Part 1 of this article

Create the HL7 Document

In the Part 3 of this article a SSHI repository will be delivered containing the configuration here described, however, this part also covers the creation of documents in the Oracle Document Editor to address the overall end to end process of SSHI configuration.

This part is optional if you plan to use either the Oracle HL7 Libraries or the repository provided in the Part 3 of this article.

With Oracle Document Editor you can create and use document definitions that will be used by the SSHI to create new documents to be exchange between endpoints. For this exercise, lets create an HL7, ADT 03 on version 2.6

Create new document


Select the protocol HL7, version 2.6 and ADT A03 as document type


No changes will be introduced to the standard, so, export the definition as ecs and xsd to be loaded by the SHHI when creating a new SSHI document


Export the xsd as Oracle 2.0


As this is a sample implementation, select all default options and save the definition. On the end, you will have a ecs and xsd file.

Now, at the SSHI console, lets use this artifacts to create a new document. When at the healthcare console, navigate to Designer, select configuration and, if not existent yet, create the HL7 Protocol, version 2.6 and new document type ADT_A03 - all options as default.


It is time to create a new document definition with the name as ADT_A03_def, import the xsd and ecs created by the document editor and leave all other parameters as default



Note: You will also note that for the construction of the outbound endpoint a Ack message will be requested. In case of need, replicate the same steps above for an Ack message for version 2.6.

Create the Internal Delivery Channels

In order to use the created JMS queues for interface type between domains it is required to create Internal Delivery Channels, both for inbound and outbound.

For that, switch to the Administration tab in the Designer. In there you will find two folders:

Send to Internal - Send messages from SSHI to Back-end Composite though the inbound JMS Queue
Receive from Internal - Send messages from SSHI to Back-end Composite though the outbound JMS Queue

Starting by the Send to Internal:


Create a new JMS Internal Delivery Channel and fill:

Name -  IC_SSHI_INBOUND
Destination name (the inbound queue name) - jms/hc/SSHIInboundQueue
Connection Factory (the connection factory name) - jms/hc/SSHIInboundCF



Click OK. Back to the Internal Channel landing page select Transport Details.Switch to Advance tab and provide:

Destination Provider: java.naming.factory.initial=weblogic.jndi.WLInitialContextFactory;java.naming.provider.url=t3://soa1-host:soa-port (replace this value by the hostname and SOA Port for the SOA Domain)

Note: In case of communicating with a clustered SOA Domain, provide all SOA managed servers hosts separated by "," e.g. java.naming.factory.initial=weblogic.jndi.WLInitialContextFactory;java.naming.provider.url=t3://soa1-host:soa-port,soa2-host:soa-port

User Name: SOA Domain User (e.g. weblogic)
Password: SOA Domain User password
*Confirm Password must be also filled and corresponding to Password

Sequencing: Deactivated (More information about sequencing options may be found at the official SSHI Oracle documentation)



Now, the Receiving from Internal


Create a new Internal Delivery Channel and set Transport Protocol as JMS and fill:

Name -  IC_SSHI_OUTBOUND
Destination name (the inbound queue name) - jms/hc/SSHIOutboundQueue
Connection Factory (the connection factory name) - jms/hc/SSHIOutboundCF


Click OK. Back to the Internal Channel landing page select Transport Details.Switch to Advance tab and provide:

Destination Provider: java.naming.factory.initial=weblogic.jndi.WLInitialContextFactory;java.naming.provider.url=t3://soa1-host:soa-port (replace this value by the hostname and SOA Port for the SOA Domain)

Note: In case of communicating with a clustered SOA Domain, provide all SOA managed servers hosts separated by "," e.g. java.naming.factory.initial=weblogic.jndi.WLInitialContextFactory;java.naming.provider.url=t3://soa1-host:soa-port,soa2-host:soa-port

User Name: SOA Domain User (e.g. weblogic)
Password: SOA Domain User password
Confirm Password must be also filled and corresponding to Password

Sequencing: Deactivated (More information about sequencing options may be found at the official SSHI Oracle documentation)


Having the documents and internal delivery channel created is time to create the two sample endpoints, one for inbound, another for the outbound.

Create the Endpoints

Lets start by creating the inbound MLLP endpoint.

From the Endpoints folder, right click and select Create


Introduce the following details:

Name: SSHI_INBOUND_MLLP
Transport Protocol: MLLP10
Connection Mode: Server (will receive messages)
Hostname: localhost or the host name of the SSHI Domain (Domain A)
Port Name: 6565

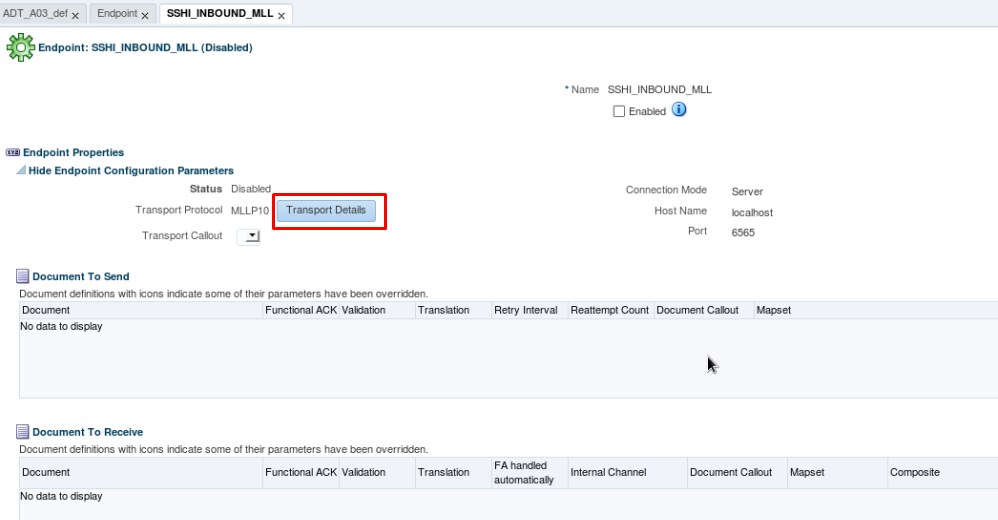

After clicking OK, the endpoint is created, however its necessary to change some configurations. For that, select the Transport Details options


Change to Advance Tab


Activate the Interface Sequencing (this is optional and depends on which type of sequencing to implement, even if sequencing should be active at all. SSHI sequencing options will be addressed by in future posts)

Immediate ACK should be set to Default and HL7 ACK set to None. All other values left as default.



Its now necessary to define which documents can be handled by the endpoint. Since it is an inbound endpoint, the created ADT_A03 document will be accepted by the endpoint.

For that, while with the endpoint screen open, select the ADT_A03 document from the Document tree and drag and drop it in the Documents to Receive area of the Endpoint screen.


Important step is to be sure that the IC_SSHI_INBOUND Internal Delivery Channel is configured as value for the Internal Channel options dropbox.


Tick the option Enabled and save the endpoint. The inbound should be now active and reachable.

Now, create an outbound endpoint


This time as client, since it will connect to a external MLLP Server

Name: SSHI_OUTBOUND_MLLP
Transport Protocol: MLLP10
Connection Mode: Client (will send messages to an MLLP Server)
Hostname: hostname of the MLLP Server
Port Name: Port of the MLLP Server


After clicking OK, the endpoint is created, however it is necessary to change some configurations. For that, select the Transport Details options



 Change to Advance Tab


This time the interface sequencing should be deactivated since for this case the interface sequencing will be established at the inbound endpoint level.

It is now time to define which documents can be handled by the endpoint. Since it is an outbound endpoint, the created ADT_A03 document will be sent by the endpoint.

For that, while with the endpoint screen open, select the ADT_A03 document from the Document tree and drag and drop it in the Document to Send area of the Endpoint screen.


Being an Outbound endpoint, it needs to be configured to accept HL7 acknowledge documents back from the HAPI MLLP server.

Due to that, an Ack document should be added to the Receiving documents list of the endpoint. This time not necessary to map to any Internal Delivery Channel since the Ack message will be discarded.

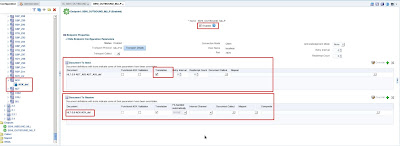

Be sure that both are with translation option active, tick the option Enabled and save the endpoint. The inbound should be now active and ready to send HL7 documents.

All the configuration on the SSHI (Domain A) are now complete. It is time to address the back-end composite application to be deployed and used from SOA Domain (Domain B) on the third and last part of this article.
